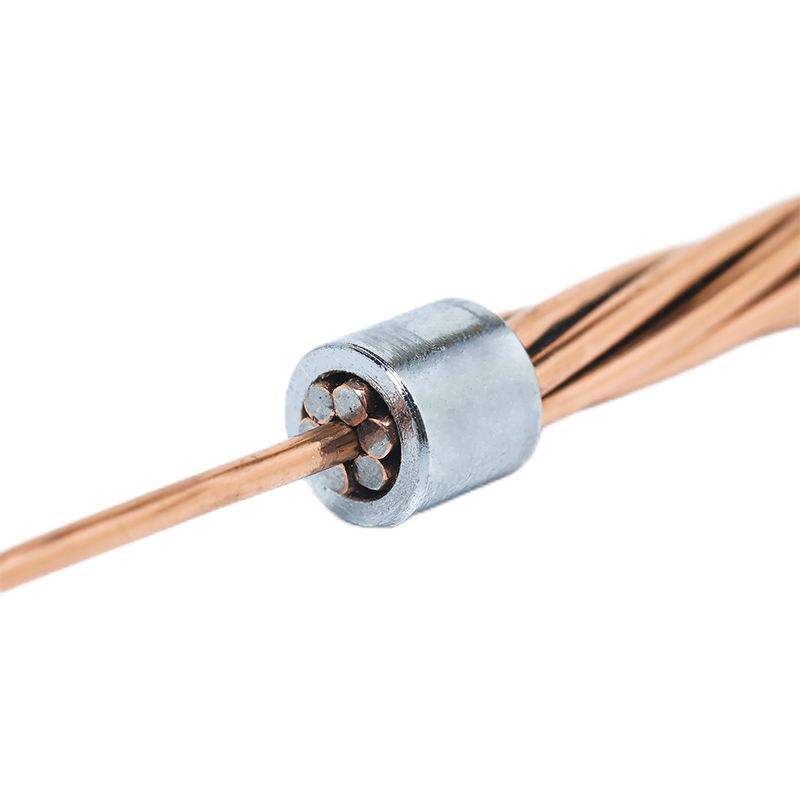

Copper Clad Steel Stranded Wires

Application
1. Earth rod for power industry
2. Trolly wire for power transmission
3. Overhead-contact systems for railway
4. Connectors for electronic components
5. Strengthened conductivity wire core for special cable

E-mail :[email protected]

Copper Clad Steel Stranded Wires Details

Specification and Technology data

Section area

(mm²)

Diameter of single wire(mm)

Number of strand

Diameter of the entire Strand(mm)

Weight for reference(kg/km)

Electrical conductivity of

a single wire(%)

16

1.70

7

5.10

130

14-40

25

2.14

7

6.36

200



35

2.52

7

7.50

280



50

3.00

7

9.0

400





1.80

19







70

3.50

7

10.0

500





2.14

19







95

2.52

19

12.6

766



120

2.84

19

14

980



150

3.15

19

15.8

1230





2.28

37







185

3.52

19

17.5

1520





2.52

37







240

4.00

19

20.0

1970





2.88

37







300

3.20

37

22.4

2430
