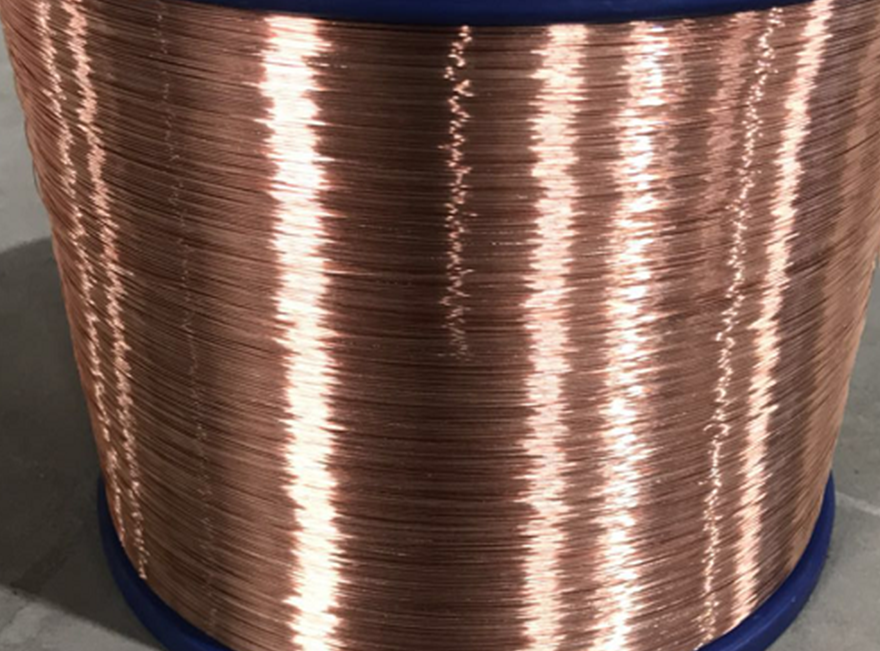

CCS-Copper Clad Steel Wires

Application


1.CATV drop cable

2.Coaxial cable

3.Telephone drop wire
4.Ground cable

5.Braiding wire for power cable

6.Welding cable


7.CP wire


Advantage


1.More competitive price than copper.
2.Higher tensile strength than copper.

E-mail :[email protected]

CCS-Copper Clad Steel Wires Details

CCS Wires(AWG) Note:
Technical Characteristics Conductivity(min at20℃) All products can be
customized upon
customer's specific
requirements
15% 18% 21% 30%
Size range 0.12mm-8.00mm 0.12mm-8.00mm 0.12mm-8.00mm 0.12mm-8.00mm
Resistivity(max at 20℃) 0.116Ω.mm/m 0.0969Ω.mm/m 0.083Ω.mm/m 0.058Ω.mm/m
Density 7.88g/cm 7.90g/cm 7.95g/cm 8.10g/cm
Elongation H 1%-3% 1%-3% 1%-3% 1%-3%
A 8%-25% 8%-25% 8%-25% 8%-25%
Tensile strength H 430Mpa-1800Mpa 430Mpa-1800Mpa 430Mpa-1800Mpa 430Mpa-1800Mpa
A 320Mpa-560Mpa 320Mpa-560Mpa 320Mpa-560Mpa 320Mpa-560Mpa

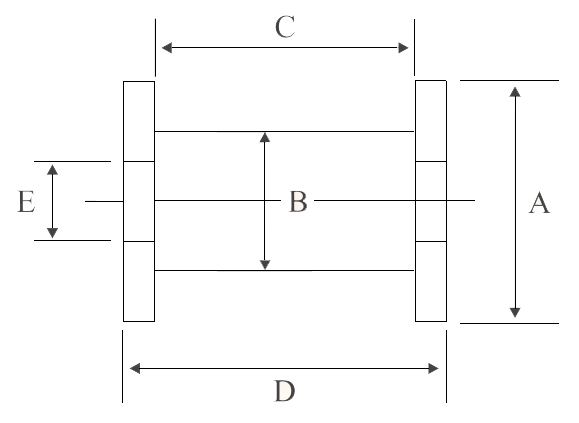

CCS Wires Packaging Details:
DIN 130mm DIN 185mm DIN 250mm DIN400mm DIN800mm
A:130mm A:185mm A:250mm A:400mm A:800mm
B:65mm B:130mm B:160mm B:160mm B:370mm
C:100mm C:160mm C:160mm C:260mm C:490mm
D:120mm D:180mm D:200mm D:290mm D:520mm
E:21mm E:31mm E:31mm E:56mm E:126mm
