Copper braided wire

    • Copper braided wire

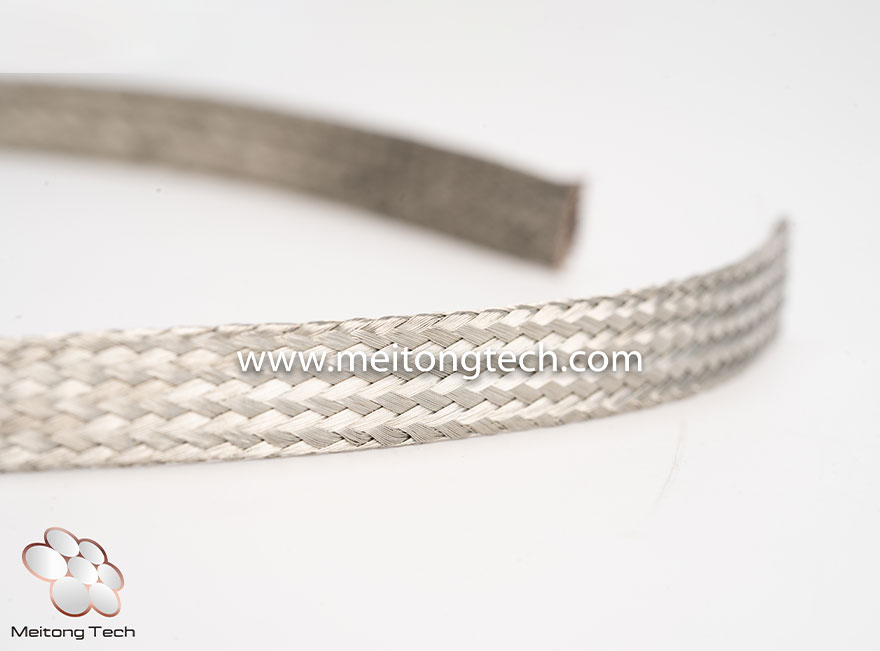

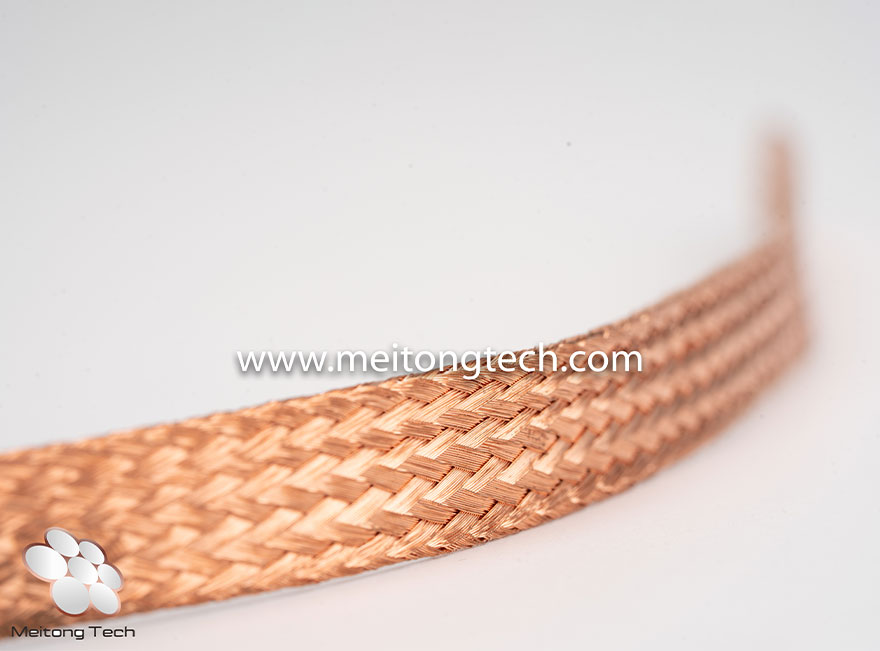

    Flat copper braided wire is used for electrical equipment,
    electricity equipment, elecronic railway
    Net electricity, electricla switches,
    industrial furnace, batteries and other soft connecting wire.
    It`s made by high purity cathode copper rod , the tinned type is made by electrolytic or electric tin plating process, which has high corrosion resistance

    Copper braided wire`s products standards: GB6313
    Copper braided wire `s products type:TZ-20/TZX-20
    Copper braided wire `s products type:TZ-15/TZX-15 Copper braided wire `s products type:TZ-10/TZX-10
    1. TZ-20/TZX-20 type copper braided wire structure is presented in Table 1
    2. TZ-15/TZX-15 type copper braided wire structure is presented in Table 2
    3. TZ-10/TZX-10 type copper braided wire structure is presented in Table 3

    0
    Views: 785
    E-mail :Info@meitongtech.com

    Copper braided wire Details

    GB6313.92   TZ-20 & TZX-20        Table one
    Section mm2  Structure:       Number of wires * qty /diameter of a single wire Size mm 20℃ direct current resistance        (Ω/km)
    no more than    		 Calculating weight kg/km
    Standard Calculating The Max width  Thick ness for reference TZ-20 TZX-20
    16 16.59 24*22*1/0.20 16 3.0 1.30 1.36 166
    25 24.88 24*33*1/0.20 18 3.5 0.87 0.91 249
    35 33.18 24*44*1/0.20 20 4.0 0.65 0.68 331
    50 49.77 24*33*2/0.20 22 5.0 0.43 0.45 498
    70 66.36 24*44*2/0.20 24 6.5 0.32 0.33 664
    95 90.49 24*40*3/0.20 20 - 0.24 0.25 905
    120 120.65 24*40*4/0.20 22 - 0.18 0.19 1207
    150 150.82 24*40*5/0.20 24 - 0.14 0.15 1508
    185 180.98 24*40*6/0.20 26 - 0.12 0.13 1810
    240 241.31 24*40*8/0.20 30 - 0.089 0.093 2413
    300 301.63 24*40*10/0.20 35 - 0.071 0.075 3016
    400 401.17 24*40*10/0.20 +36*44*2/0.20 40 - 0.054 0.056 4004
    500 500.65 34*40*10/0.20 +48*44*3/0.20 45 - 0.043 0.045 5007
    630 633.43 24*40*10/0.20
    +48*44*5/0.20    		 50 - 0.034 0.036 6334
    800 766.15 24*40*10*0.20 +48*44*7/0.20 55 - 0.028 0.029 7661

    GB6313.92       TZ-15 & TZX-15                  Table Two
    Section mm2  Structure:       Number of wires * qty /diameter of a single wire Size mm 20℃ direct current resistance        (Ω/km)
    no more than    		 Calculating weight kg/km
    Standard Calculating The Max width  Thick ness for reference TZ-20 TZX-20
    4 3.39 48*4*1/0.15 9 1.0 6.36 6.65 34
    4 3.82 36*6*1/0.15 9 1.5 5.64 5.89 38
    6 5.09 48*6*1/0.15 12 1.2 4.23 4.42 51
    10 10.18 48*12*1/0.15 20 1.4 2.12 2.22 102
    10 10.18 36*16*1/0.15 16 2.0 2.12 2.22 102
    16 16.96 48*20*1/0.15 22 2.0 1.27 1.33 170
    16 16.54 36*26*1/0.15 20 2.5 1.30 1.35 166
    20 20.36 36*32*1/0.15 22 3.0 1.06 1.10 204
    25 25.44 48*30*1/0.15 22 3.0 0.85 0.89 254
    25 25.44 36*40*1/0.15 26 3.0 0.85 0.89 254
    35 33.93 48*20*2/0.15 26 3.2 0.64 0.67 340
    35 35.62 36*56*1/0.15 32 3.0 0.61 0.64 357
    50 50.89 48*20*3/0.15 28 4.8 0.42 0.44 510
    50 50.89 36*40*2/0.15 28 5.0 0.43 0.44 510
    70 71.25 48*28*3/0.15 36 5.0 0.30 0.31 714
    70 71.25 36*56*2/0.15 35 6.0 0.30 0.31 714
    75 76.33 36*40*3/0.15 30 7.0 0.28 0.29 765
    95 95.00 40*28*4/0.15 40 6.0 0.23 0.24 950
    120 118.74 48*28*5/0.15 42 7.0 0.18 0.19 1187
